Connection with other products

NOTICE
Damage to the electronics due to potential equalization The cables' shield may be connected to the housing, the ground or the ground for the product's power supply. If there are different ground potentials in the test setup, equalizing currents can flow between the products via the cables' shield. Take account of different electric potentials in your test setup and take appropriate measures to prevent equalizing currents.

NOTICE

Damage to the electronics due to potential equalization

The cables' shield may be connected to the housing, the ground or the ground for the product's power supply. If there are different ground potentials in the test setup, equalizing currents can flow between the products via the cables' shield.
Take account of different electric potentials in your test setup and take appropriate measures to prevent equalizing currents.

Note
Ensure that the test setup is EMC-compliant. A test setup that uses shielded and unshielded components at the same time can lead to impairment of the signal quality and is not recommended by ETAS.

Note
Please ensure that the device is installed and operated as described in the user manual to maintain the specified EMC properties in the respective application. Deviation from the specified installation and operation instructions or connecting the device with other devices may result in a deviation from the specified EMC properties.

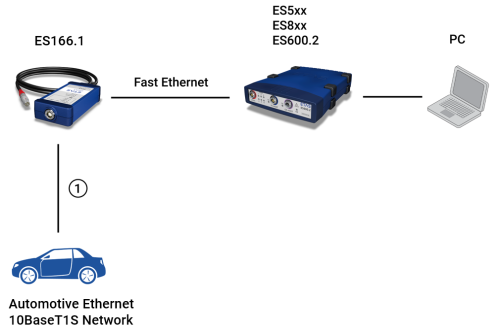

The ES166.1 is designed to connect to an Automotive Ethernet Network and the ES600.2 or an ES5xx/ES8xx module.

Cables in Fig.	Function	Short name
1	Cables for connection to the 10Base-T1S Ethernet Network	CBE600.1-3 (shielded, open end cable)
