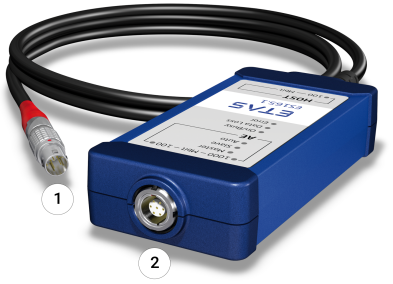

Graphical overview of elements

Fig.	Connection	Description
1	LEMO 1B	Combined connection for power supply and 10/100 BASE-T Ethernet (IEEE 802.3) via connected ETAS module (e.g. ES5xx and ES8xx)
2	LEMO 1B	100/1000BASE-T1 Automotive Ethernet connection
