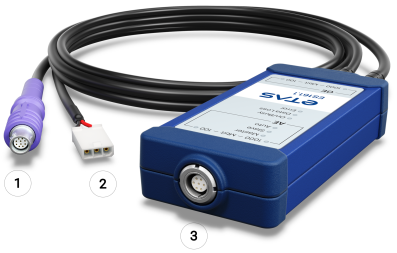

Graphical overview of elements
|
Fig. |
Connection |
Description |
|---|---|---|
|
1 |
LEMO 1B |
100/1000 BASE-T Ethernet (IEEE 802.3) |
|
2 |
VAL-U-LOK |
Connection for power cords with banana connectors (CBP160.1-0.5m) |
|
Connection for power cords with safety banana connectors |
||
|
3 |
LEMO 1B |
100/1000BASE-T1 Automotive Ethernet connection |
