About ES134.1 - Interface Extension Module

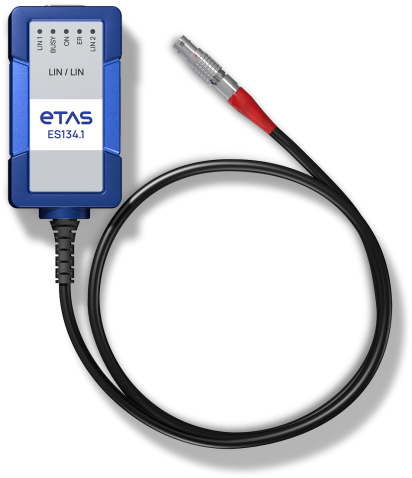

The ES134.1 Interface Extension Module is equipped with two LIN bus interfaces for connection to the LIN bus of a vehicle or an ECU and with a Lemo connector for connection of data acquisition and real-time control hardware modules.

Scope of application

The ES134.1 can be used for the following tasks:

  • Recording and capturing of communication data as well as calibration of ECUs via the LIN bus interface

  • ECU diagnostics via the LIN bus interface

Properties

The most important properties at a glance:

  • Two independent LIN interfaces

  • Targeted for ECU measurement

  • Multi-Client Support

  • Synchronization of the measuring channels with INCA

  • No external power supply necessary

  • Adaptable to ambient conditions (temperature, EMC)

  • High level of mechanical stability and robustness
