About ES132.1 - Interface Extension Module

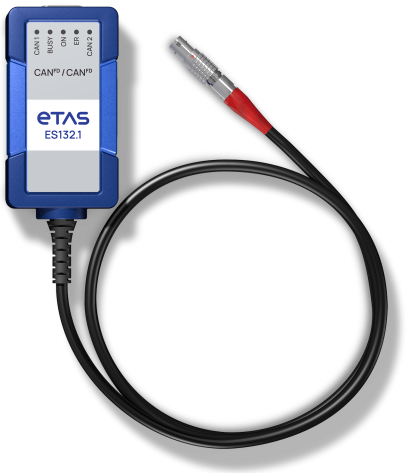

The ES132.1 Interface Extension Module is equipped with two CAN / CAN FD interfaces for connection to the CAN bus of a vehicle or an ECU and with a Lemo interface.

Scope of application

The ES132.1 can be used for the following tasks:

  • Recording and capturing communication data and calibration of ECUs via the CAN bus interface

  • ECU diagnostics via the CAN bus interface and J2534 pass-through interface

  • Vehicle diagnostics and reprogramming via a J2534 pass-through interface using application software from third-party providers

  • Flash programming of ECUs

Properties

The most important properties at a glance:

  • Two independent CAN/CAN FD interfaces:

    • CAN high-speed or CAN FD operating mode (SIC)
    • CAN protocols CAN V2.0a (standard identifier with 11 bit) and CAN V2.0b (extended identifier with 29 bit)
    • Support for ISO-compliant CAN FD and non-ISO-compliant CAN FD
    • Multi-client access to the same CAN channel (max. four clients can access the device; two clients per channel)
  • Synchronization of the measuring channels with INCA
  • DSUB connector in accordance with "CAN in Automation" (CiA)
  • No external power supply necessary

  • Adaptable to ambient conditions (temperature, EMC)

  • High level of mechanical stability and robustness
