Cables
Data cables
CBCF100 Cable
Y-cable for connecting a second CAN channel
DSUB connection (female)
|
Pin |
Signal |
|---|---|
|
1 |
Not connected |
|
2 |
CAN1 low |
|
3 |
Ground |
|
4 |
CAN2 low |
|
5 |
Shield |
|
6 |
Ground |
|
7 |
CAN1 high |
|
8 |
CAN2 high |
|
9 |
Not used |
DSUB connection (male)
|
Pin |
DSUB connection "1" |
DSUB connection "2" |
|---|---|---|
|
1 |
Not connected |
Not connected |
|
2 |
CAN1 low |
CAN2 low |
|
3 |
Ground |
Ground |
|
4 |
Not connected |
Not connected |
|
5 |
Shield |
Shield |
|
6 |
Ground |
Ground |
|
7 |
CAN1 high |
CAN2 high |
|
8 |
Not connected |
Not connected |
|
9 |
Not used+ |
Not used |
|
Order name |
Short name |
Order number |
|---|---|---|
|
CAN and FlexRay interface Y-cable, DSUB – 2 x DSUB (9fc-9mc+9mc), 0m3 |
CBCF100.1-0m3 |
F 00K 107 939 |
CBH500 Cable
|
Note |
|---|
|
The CBH500 cable only supports one channel. |
|
Order name |
Short name |
Order number |
|---|---|---|
|
CAN, LIN and FlexRay interface cable, DSUB-DSUB (9fc - 9mc + 9fc), 2 m |
CBH500-2 |
F 00K 106 276 |

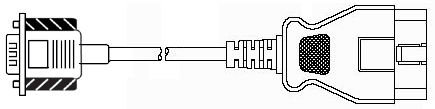

CBAC180
OBDII (J1962) adapter cable for the CAN Interfaces of ES132.1.
|
DSUB connection |
OBD2 connection |
Signal |
|---|---|---|
|
Pin |
Pin |
|
|
7 |
6 |
CAN1 High |
|
2 |
2 |
CAN1 Low |
|
8 |
3 |
CAN2 High |
|
4 |
4 |
CAN2 Low |
|
9 |
5 |
Power V+ |
|
3 |
6 |
GND |
