Connection with other products

Wiring to the computer

Compatible hardware

Note
The Automotive Ethernet interface is not compatible with the standard Ethernet interfaces of ETAS modules. A CBEB10x.1 Media Converter or an ES88x ECU Interface Module is needed to connect the BR_XETK-S3.0 to the PC.

Requirements for failsafe automotive ethernet operation

For failsafe operation of the Automotive Ethernet communication channel, all customer specific installations - including cables, connectors, and board adaptations have be compliant to:

IEEE Std. 802.3bwTM-2015, “Amendment 1: Physical Layer Specifications and Management Parameters for 100 Mb/s Operation over a Single BalancedTwisted Pair Cable (100BASE-T1)”.
Open Alliance, “BroadR-Reach® Definitions for Communication Channel, Version 2.0”.

Note
To achieve an appropriate channel performance all PCB board and cable segments have to be optimized with regard to line impedance matching, length matching within the differential net routing or twisted pair cabling and on the reduction of untwisted regions. Stub segments must be avoided for the Pointto-Point cable connection in favor of inline connectors and shielding measures shall be considered depending on the operation environment.

Note

To achieve an appropriate channel performance all PCB board and cable segments have to be optimized with regard to line impedance matching, length matching within the differential net routing or twisted pair cabling and on the reduction of untwisted regions. Stub segments must be avoided for the Pointto-Point cable connection in favor of inline connectors and shielding measures shall be considered depending on the operation environment.

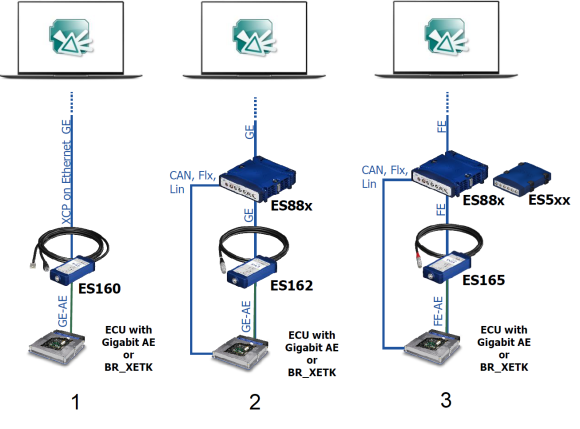

Example connection overview with media converter

For use with PC or standard Ethernet switches
For use with GE ports together with ES8xx devices.
For use with FE ports together with ES5xx, ES8xx devices.

Example connection overview with media converter

The Automotive Ethernet can be connected directly into a ES8xx with AE input(not on the picture).

CBEB100.1 automotive ethernet media converter

BR_XETK-S3.0 connected with CBEB100.1 Automotive Ethernet Media Converter and ETAS Cable to PC.

ES160.1 automotive ethernet media converter

BR_XETK-S3.0 connected with ES160.1 Automotive Ethernet Media Converter via Gigabit Ethernet Interface to PC.

ES162.1 automotive ethernet media converter

BR_XETK-S3.0 connected with ES162.1 Automotive Ethernet Media Converter via Gigabit Ethernet Interface to ETAS Modules

ES165.1 automotive ethernet media converter

BR_XETK-S3.0 connected with ES165.1 Automotive Ethernet Media Converter via Fast Ethernet Interface to ETAS Modules.

ES88x ECU and bus interface module

BR_XETK-S3.0 connected via Gigabit Ethernet Interface to ES88x ECU and Bus Interface Modules with ETAS Cables.
