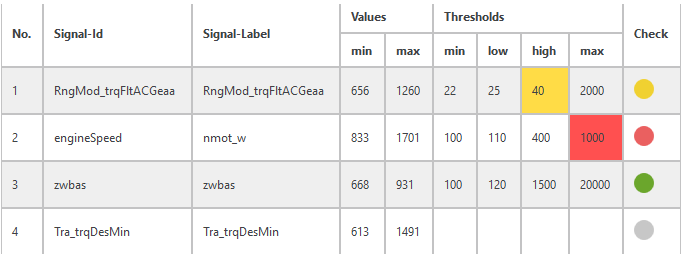

MinMax Table

Table type that shows the evaluation of the global maximum and the global minimum of each signal. Additionally, each row shows the associated thresholds and the status of the traffic light. When exceeding a threshold, the affected fields are marked in the appropriate color. If no thresholds are defined for a signal, the traffic light is gray. For more information, see Traffic Lights.

Optionally, conditions and triggers can be defined to select specific intervals of a signal for evaluation. For more information, see Conditions, Triggers, and Filters.
