DFC Table

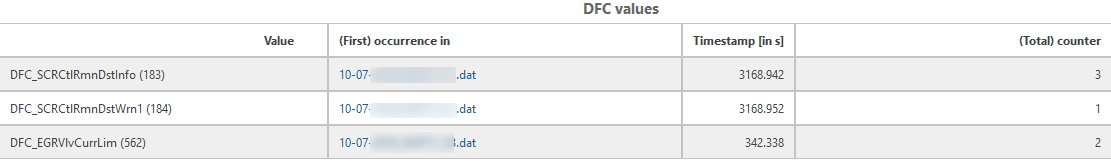

Special table type for detecting and reporting the diagnostic fault checks (DFC). Each row contains the DFC value, the file where the status first changed to this DFC value, the time stamp of that change, and the counter of all status changes to this DFC value. This table type can only be configured with the EATB Worker MATLAB license.

There are three traffic light statuses:

Color	Name	Description
	Gray	Missing signal(s) in measurement
	Green	No DFC status changes were found (empty table) and measurements contain all required signals.
	Red	At least one DFC status change was found (non-empty table).
