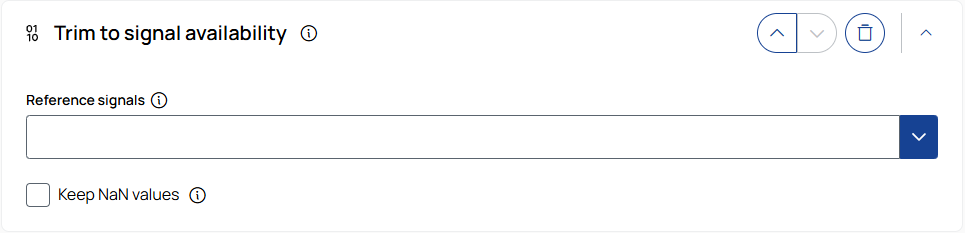

Trim to signal availability

Trims a measurement file to the common time range in which all selected reference signals are available.

Reference signals

Selects the signals used to determine the trim range. The measurement file is restricted to the time range in which all selected signals are available. Autocomplete lists signals as label and, where available, label\device. If the same label exists on multiple devices, select the entry for the required device.

Keep NaN values

Includes leading and trailing NaN values when determining whether a signal is available. If the checkbox is cleared, leading and trailing NaN values are not considered part of the signal availability.
