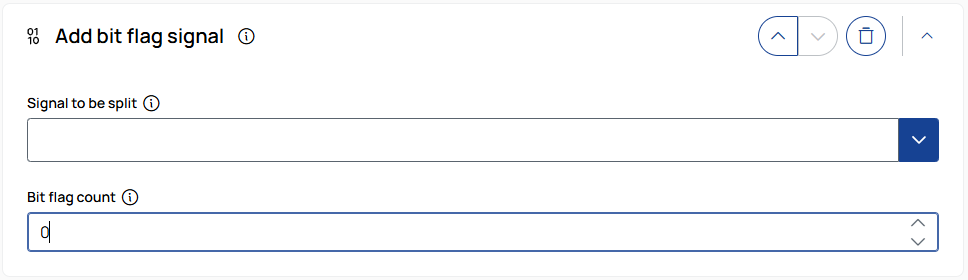

Add bit flag signal

Extracts binary states that are stored as individual bits of a numeric signal and creates a separate signal for each extracted bit flag.

Signal to be split

Selects the signal that contains the bit flags to extract. Autocomplete lists signals as label and, where available, label\device. If the same label exists on multiple devices, select the entry for the required device.

Bit flag count

Defines how many bit flags are extracted from the selected signal, starting with bit 0. For example, a value of 8 extracts bits 0 through 7.
