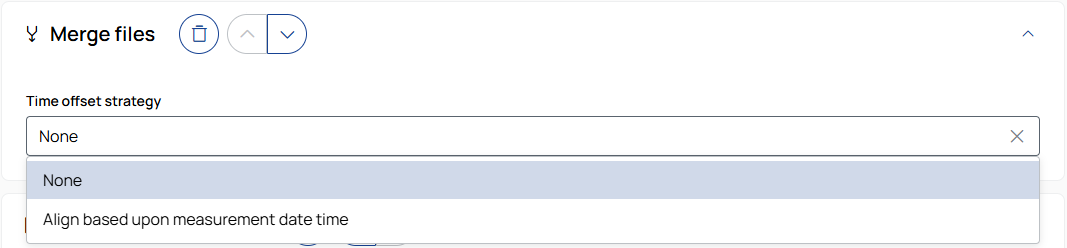

Merge files
Time offset handling
Defines how time offsets between measurement files are applied:
None: Aligns all measurement files to a common start time. Each file starts at time zero, regardless of its original timestamp.
Measurement date time: Preserves the original time offsets between measurement files. The signals are aligned according to their measurement timestamps.
To remove the operation from the job, click the trash can button.
To move the operation up or down in the job sequence, use the arrow buttons next to the trash can icon.
/
To expand or collapse the operation, click the arrow in the top-right corner of the operation panel.
