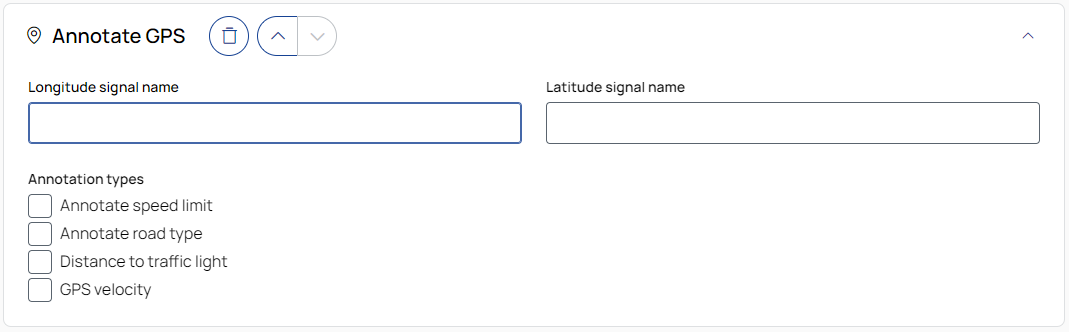

Add GPS-based signals

Longitude signal name

Enter the exact name of the longitude signal.

Latitude signal name

Enter the exact name of the latitude signal.

Signals to add

Select the types of annotations to add to your GPS data. The information used is obtained from © OpenStreetMap.

Speed limit: Maximum speed limits for road sections.

Road type: The classification of the road segment. The mapping is as follows:

Distance to traffic light: Distance from the GPS position to the nearest traffic light.

GPS velocity: Instantaneous velocity calculated from changes in GPS position over time.

Note
The GPS-based annotation feature retrieves data from © OpenStreetMap. If your system uses a proxy, ensure that the environment variables HTTP_PROXY and HTTPS_PROXY are set correctly. Otherwise, the operation may fail during job execution. Example error: "Failed to resolve 'overpass-api.de'".
