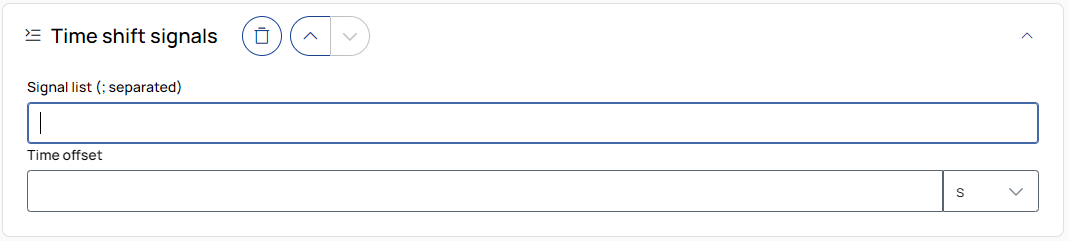

Shift signals by time
Applies a time offset to the specified signals to align them with other data.
Signals
Type the names of the signals to shift and use Enter to confirm. The supported autocompletion is based on the signal sources defined in the Sources step.
Time offset
Enter the amount of time to shift the signals. Use a positive value to delay the signal or a negative value to shift it earlier. To select the unit, use the drop-down list.
To remove the operation from the job, click the trash can button.
To move the operation up or down in the job sequence, use the arrow buttons next to the trash can icon.
/
To expand or collapse the operation, click the arrow in the top-right corner of the operation panel.
