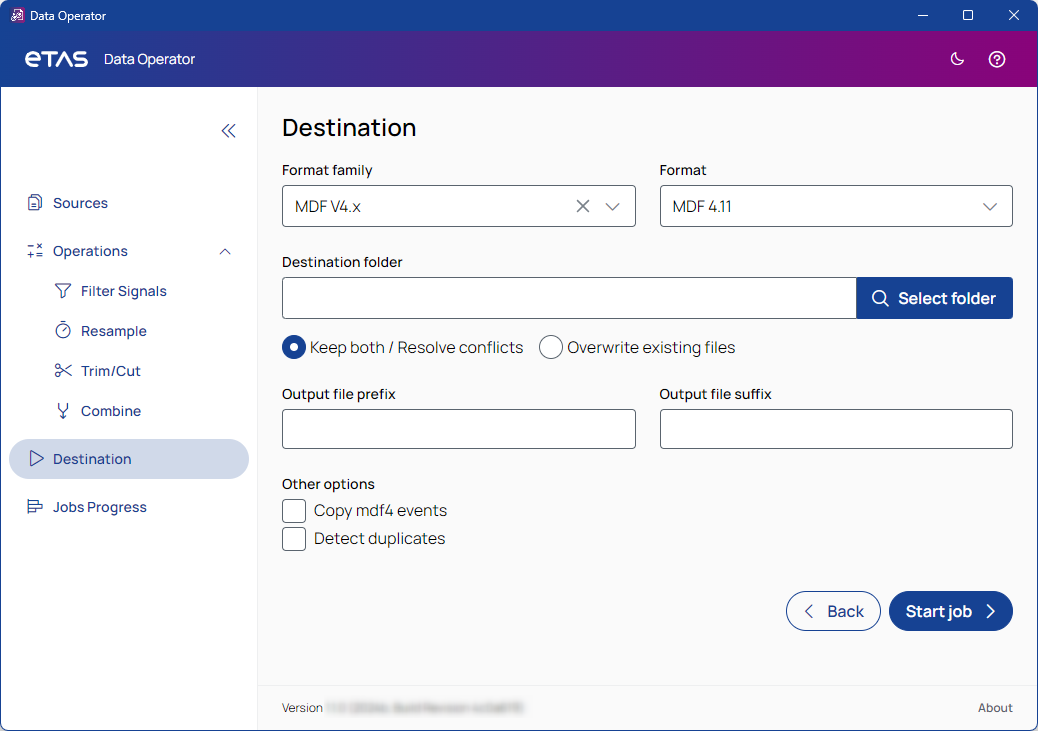

Destination

Format family

To select the destination file format family, use the drop-down list.

Format

To select the destination file format based on the selected format family, use the drop-down list.

Destination folder

Opens a folder selection dialog where you can select the destination folder to save the destination file to. Alternatively, you can type the path in the input field.

Select an option to handle naming conflicts in the destination folder:

Keep both/Resolve conflicts: Keeps all files and adds a suffix to the name of the new file.

Overwrite existing: Overwrites existing files with the same name.

Output file prefix/suffix

In the input fields, enter a prefix/suffix you want to add to the file names.

Other options

Copy MDF4 events: Only relevant if both the source and destination file formats are MDF4. Copies the events from the source to the target MDF4 file.

Detect duplicates: Detects duplicate signals in measurement files. The results of this operation can be found in the job log. Can have significant performance impact.

Export workflow: Exports the workflow with all settings as JSON file. It can be used with the Data Operator CLI.

Returns to the last step and saves your entries.

Starts the job with all the settings you made and opens the Jobs progress step, where you can see the status of the job's progress.
