System Graph

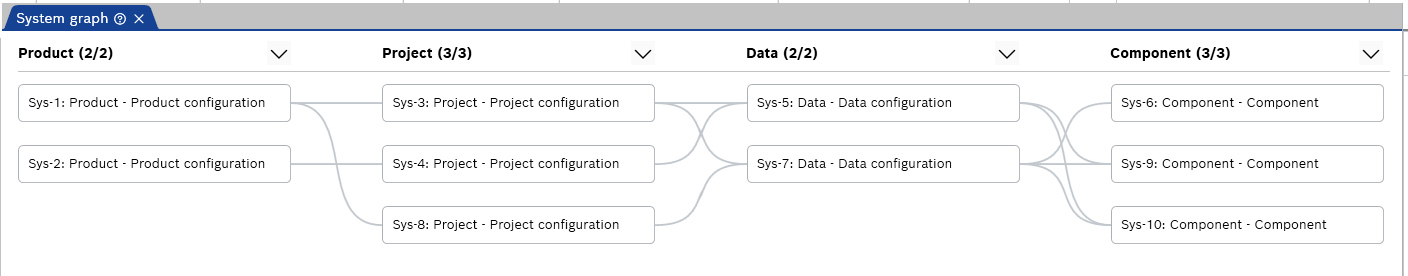

The System graph displays the hierarchy and connections between the system configuration items and gives a good overview of the system configuration. It is analogous to the Traceability graph.

The view depends on the active variant, and filters can be used to configure it further. You can enable or disable the configuration items on the System configuration page.

The system graphs are automatically created based on the system configuration items and their connection.
