Damage Scenarios

A damage scenario is an adverse consequence involving the TOE, a vehicle, or a vehicle function and affecting the road user. There are four impact categories concerning the road user, as given by ISO/SAE 21434:

• Safety
• Financial
• Operational
• Privacy

The impact describes the magnitude of damage or physical harm from a damage scenario. There are four impact ratings defined according to the impact category:

• Severe
• Major
• Moderate
• Negligible

The tables below show the definition of impact ratings:

Impact rating	Criteria for safety impact rating
Severe	S3: Life-threatening injuries (survival uncertain), fatal injuries
Major	S2: Severe and l life-threatening injuries (survival probable)
Moderate	S1: Light and moderate injuries
Negligible	S0: No injuries

Tab. 1: Example: Safety impact rating criteria

Impact rating	Criteria for financial impact rating
Severe	Catastrophic consequences which the affected road user might not overcome
Major	Substantial consequences which the affected road user will be able to overcome
Moderate	Inconvenient consequences which the affected road user will be able to overcome with limited resources
Negligible	No effect, negligible consequences or is irrelevant to the road user

Tab. 2: Example: Financial impact rating criteria

Impact rating	Criteria for operational impact rating
Severe	Loss or impairment of a core vehicle function. Example 1: Vehicle not working or showing unexpected behaviour of core functions such as enabling of limp home mode or autonomous driving to an unintended location.
Major	Loss or impairment of an important vehicle function. Example 2: Significant annoyance of the driver.
Moderate	Partial degradation of a vehicle function. Example 3: User satisfaction negatively affected.
Negligible	No impairment or non-perceivable impairment of a vehicle function.

Tab. 3: Example: Operational impact rating criteria

Impact rating	Criteria for privacy impact rating
Severe	Significant or even irreversible impact to the road user. The information regarding the road user is highly sensitive and easy to link to a PII principal.
Major	Serious impact to the road user. The information regarding the road user is: highly sensitive and difficult to link to a PII principal; or sensitive and easy to link to a PII principal.
Moderate	Inconvenient consequences to the road user. The information regarding the road user is: sensitive but difficult to link to a PII principal; or not sensitive but easy to link to a PII principal.
Negligible	No effect or, negligible consequences or is irrelevant to the road user. The information regarding the road user is not sensitive and difficult to link to a PII principal.

Tab. 4: Example: Privacy impact rating criteria

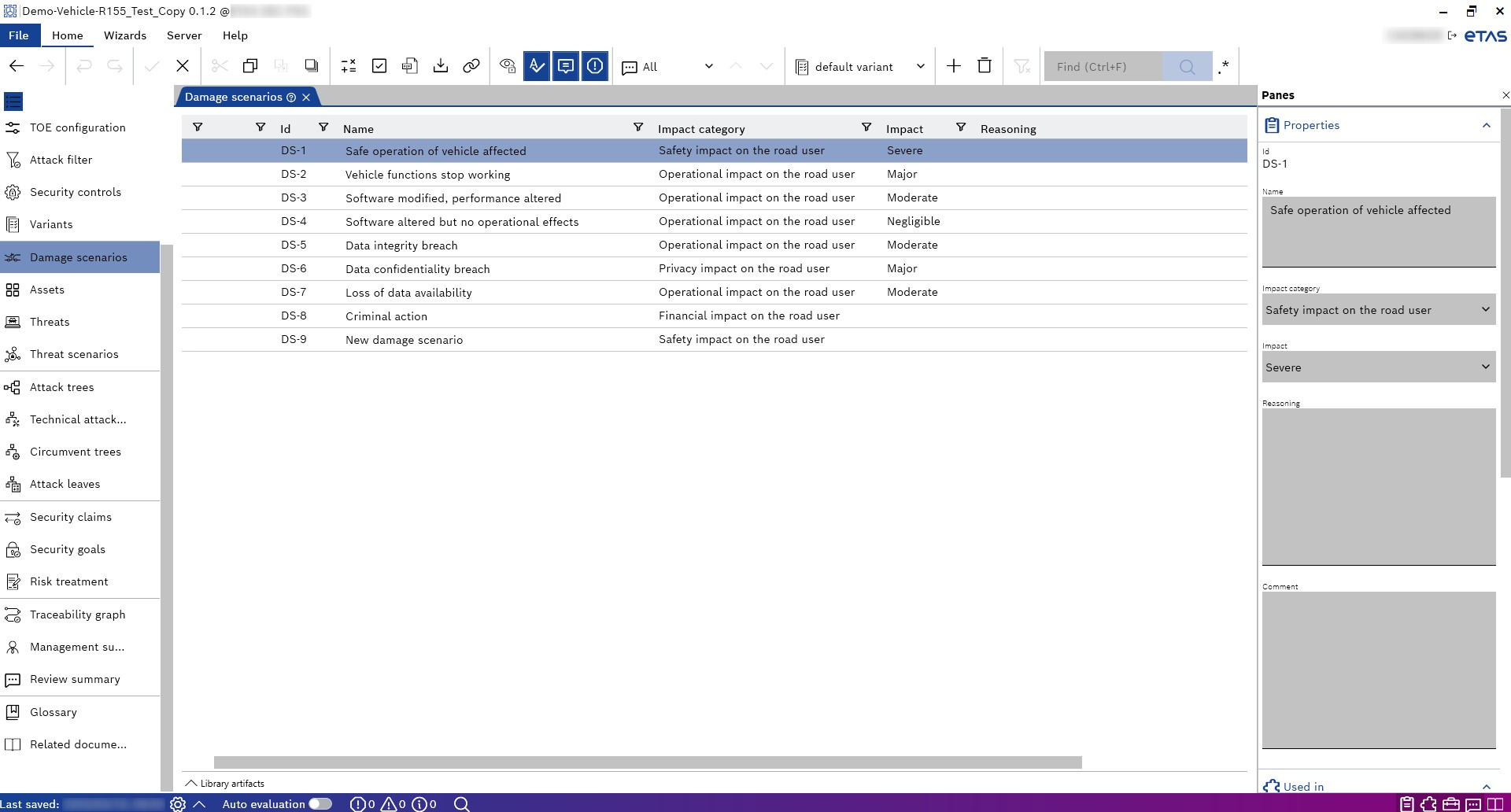

You must fill in the reasoning field. If you leave this field empty and do your project validation, it will eventually give you an error because you have not filled in your reasoning.

Each damage scenario must be assigned precisely with one impact category and impact. If a damage scenario has several relevant impact categories, you should specify damage scenarios further to make them specific enough so that only one impact category applies. If you can not do that, you must assign the impact category that leads to the worst impact.
