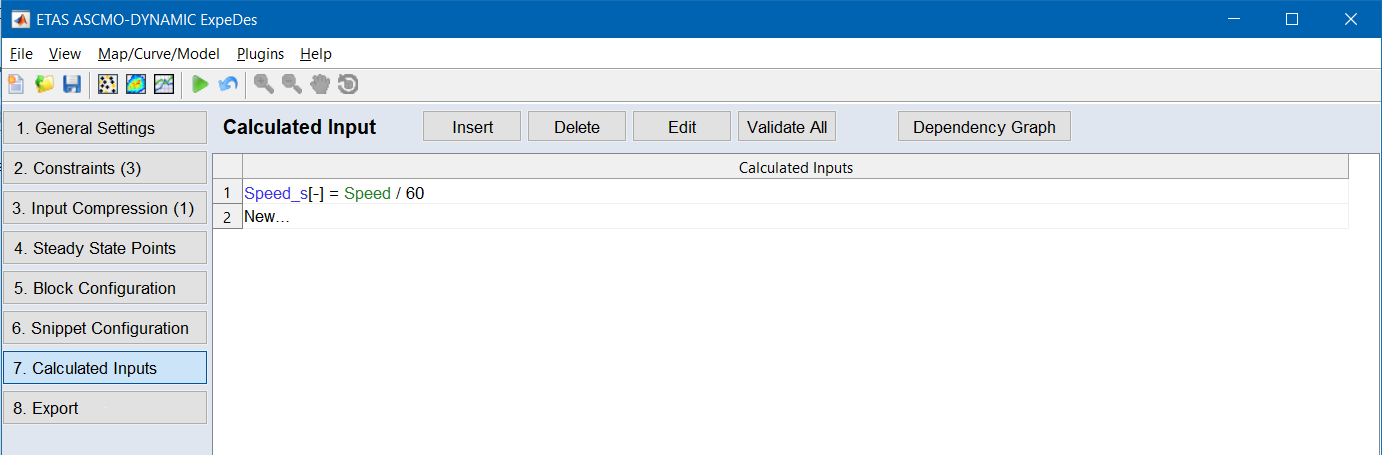

Step 7: Calculated Inputs

This step allows to add and specify additional inputs calculated from formulas.

The calculated inputs can be seen in all visualizations, e.g. scatter plot, scope view, table view. They are also included in the exported experiment plan.

Insert

Creates a new Calculated Input and opens the "Add Calculated Input" window. The Calculated Input is inserted before the selected row.

Delete

Deletes the selected Calculated Input(s).

Edit

Opens the "Edit Calculated Input" window where you can edit the selected Calculated Input.

Note
You can also double-click to edit a Calculated Input.

Validate All

Checks the validity of all Calculated Input(s).

Dependency Graph

Opens the "Dependency Graph for Calculated Inputs" window where you can see the graphical representation of the Calculated Input(s) and analyze dependencies.

Note
Syntax Highlighting with different colors for Node, Input or Parameter (see Legend).

Edit Mode option

If the Edit Mode option is activated, you can change the elements of the function directly in the Calculated Inputs table. The names of inputs, outputs and parameters are marked with %.

See also the tutorial in the Help (Step 7: Calculated Inputs).
