Step 4: Input Compression

In this step, compressions of measuring points in certain areas of the measuring space can be specified for inputs by area.

The model precision in this area can be improved because the measuring points are closer together.

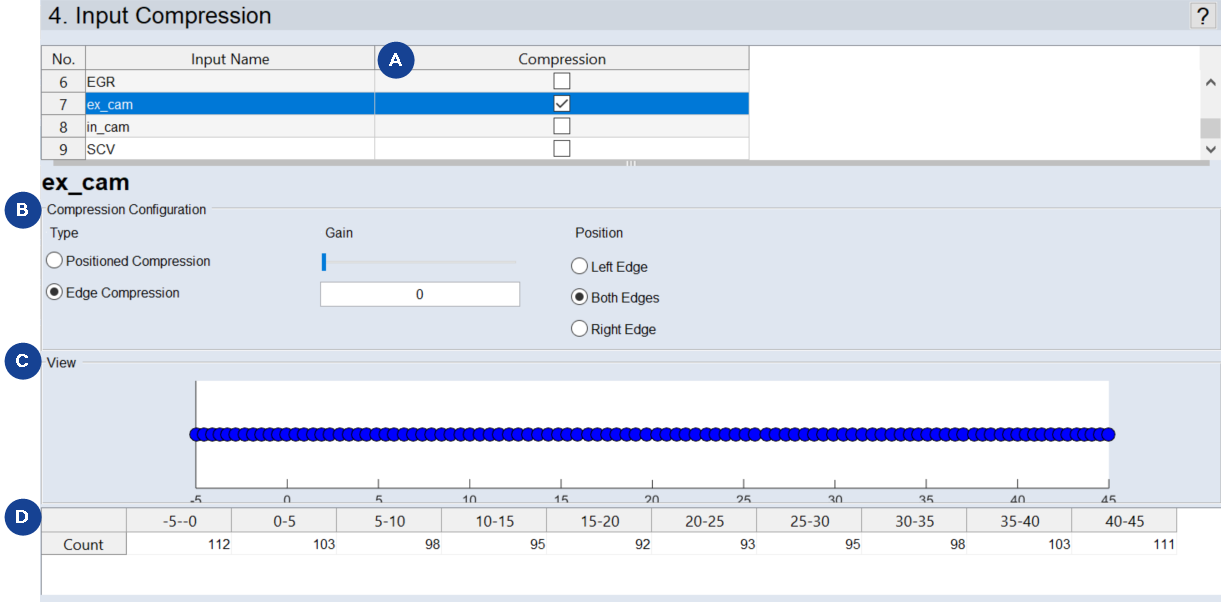

Fig. 18: ASCMO-STATIC ExpeDes Step 4: Input compression (type Edge Compression)

Selecting inputs to be compressed

• In the Compression column, activate the option for each input you want to compress (see A in ASCMO-STATIC ExpeDes Step 4: Input compression (type Edge Compression)).

• The input currently selected in the list is shown below the list.
