Optimization Menu (ASCMO-DYNAMIC)

The Optimization menu consists of the following entries:

Export to MOCA

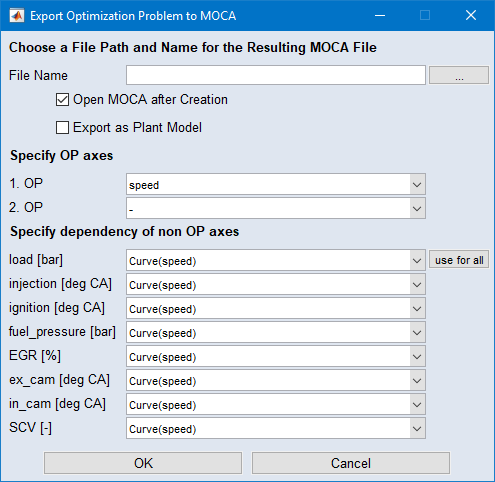

Opens the Closed "Export Optimization Problem to MOCA" window where you can export the current global optimization problem to an ASCMO-MOCA project.

During the export, the inputs (except the ones selected as operating point axes) are exported as curves/maps/cubes depending on the operating point axes. The training data, validation data, and test datasets are taken over to MOCA as input data.

For each ASCMO-DYNAMIC output, a new model is added to the model list and function nodes are created.
