Lock OPs in-/outside Driving Cycle

Calibration menu > Calibration Maps.> Operating Points menu > Lock OPs in-/outside Cycle Trace

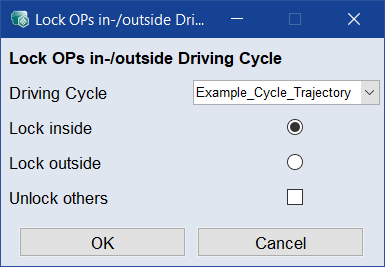

The Lock OPs in-/outside Driving Cycle window contains the following elements.

Driving Cycle

You can select a particular driving cycle by its name, or you can select All cycles.

Lock inside

If activated, all operating points inside the convex hull of the elected driving cycle are locked.

Operating points outside the hull remain unchanged, unless you activate Unlock others.

Lock outside

If activated, all operating points outside the convex hull of the elected driving cycle are locked.

Operating points inside the hull remain unchanged, unless you activate Unlock others.

Unlock others

If activated, the operating points not selected for locking are unlocked.

OK

Applies your settings and closes the window.

Cancel

Discards your settings and closes the window.
