Repetition Point Analysis

Data menu > Repetition Point Analysis

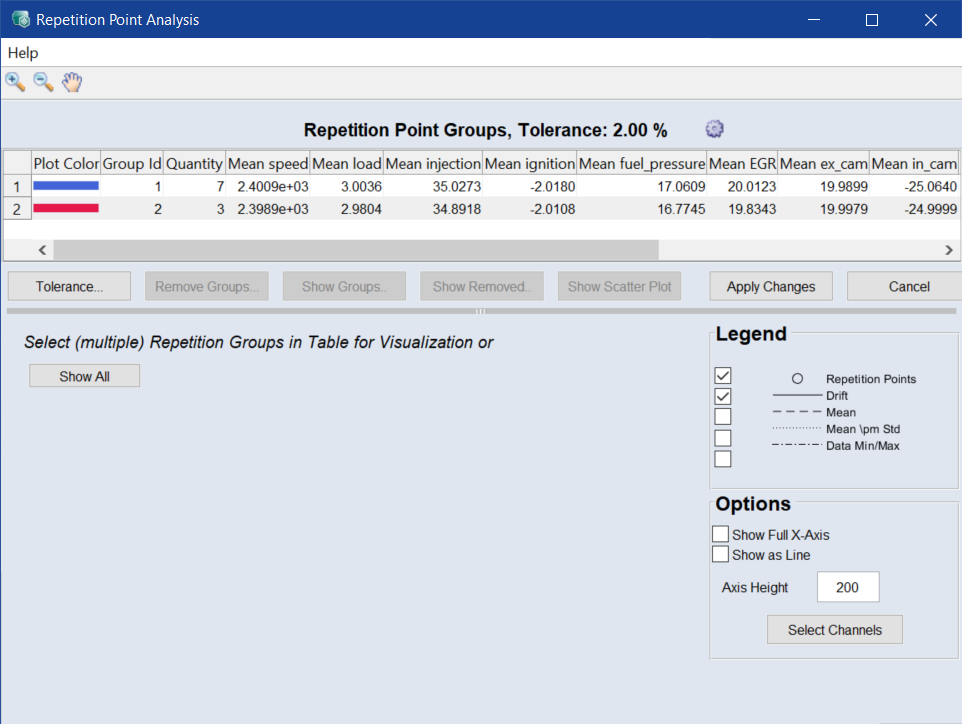

This window displays the determined groups of duplicate points (based on a specified tolerance value).

Each of the groups is named by an identifier (Repetition Point Group ID), the Quantity column contains the number of points in this group, and the subsequent columns contain the means of the points.

The Repetition Point Analysis window contains the following elements:

The gear symbol  and Tolerance button open the Detection Threshold and Input Selection window, which provides the following functions:

  • Select Inputs

    Select the inputs to be included in the determination of the duplicate points.

  • Normalized Radius [%]

    Define the value (in percent) for the recognition of duplicate points.

    The tolerance for the repetition detection in percent (Normalized Radius [%]) here refers to the highest possible distance of two points. For the calculation of the distance, the values of the X-Axis (min/max) are scaled to 0..1.

Remove Groups

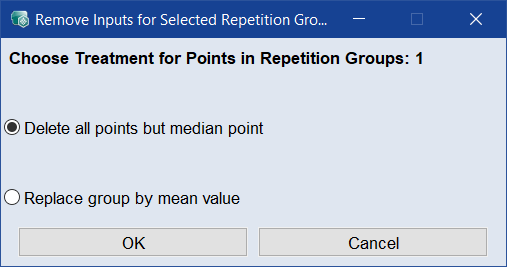

Opens the ClosedRemove Inputs for Selected Repetition Groups window. Select one or multiple groups and specify the method on how to replace the determined set of points in the Remove Inputs for Selected Repetition Groups window.

  • Delete all points but median point: The individual points are replaced with a median point in the list.

  • Replace group by mean point: The individual points are replaced with the mean value of the points to be removed.

  • OK replaces the repetition point group according to the option you selected.

Show Groups

Shows the repetition groups.

Show Removed

Shows the removed points.

Show Scatter Plot

Shows a scatter plot.

Legend

The change of the measured values of the outputs (as a function of the index of the measuring point in the dataset) are displayed in a plot. Select which elements should be displayed in the plot with the checkboxes.

Apply Changes

Closes the window and applies your settings.

Cancel

Discards your settings and closes the window.
