Model Evaluation List

Extras menu > Model Evaluation List > Add Current Setting to List1 Opens the Model Evaluation List and adds the values currently defined in the ISP view.

Or

Extras menu > Model Evaluation List > Show Evaluation List2 Opens the Model Evaluation List.

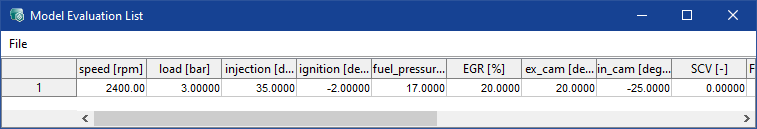

The Model Evaluation List window is used for saving and managing interesting data points.

The File menu contains the following elements.

File

• Plot Selected Data

  Represents the data from one, two or three columns in a plot.

• Show Current Row in Intersection Plot

  Sets the values of the currently selected row in the intersection plots.

• Apply Selected Row to Calibration Maps

  Sets the values of the currently selected row in the calibration map.

• Export

  Saves the list as Excel file (*.xls, *xlsx), a list of comma-separated values (*.csv) or as an MDA ASCII Export file (*.ascii).

• Delete Selected Rows

  Deletes the currently selected rows from the list.

• Clear List

  Deletes the data from the list and closes it.

• Close

  Closes the Model Evaluation List. The currently available entries are retained and saved with the project.
