Contour Properties
In/Outputs menu > 3D Plot Outputs > View menu > Contour Options > Contour Properties

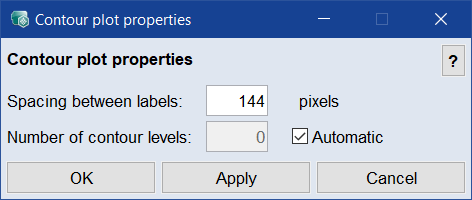

The Contour Properties window contains the following elements:
Spacing between labels
Enter the number of pixels between two labels on the same contour level.
Number of contour levels and Automatic
|
Note |
|---|
|
The Number of contour levels field is only editable if Automatic is deactivated. |
If Automatic is activated, the number of contour levels is determined automatically. The Number of contour levels field is set to read-only.

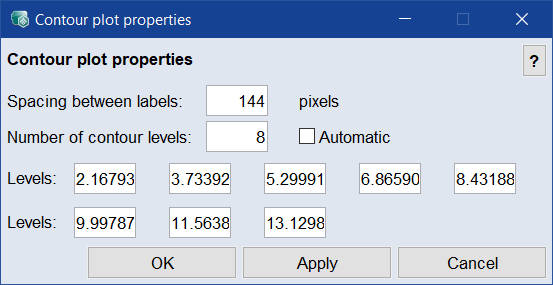

If Automatic is deactivated, enter the desired number <n> of levels in the Number of contour levels field and press <Return>.
<n> fields for the levels open, where you can set the level values.
OK
Applies your settings and closes the window.
Apply
Applies your settings, but does not close the window.
Cancel
Discards your settings and closes the window.
