Export to FMI

When you export a model to FMI, a C file and a DLL file for Windows (32/64 bit) are generated for each output with a corresponding XML meta-description for the input and output specification. For an output named Y1, a file predict_Y1.fmu is generated. For more information on FMI, see Model Export to FMI.

Export a model to FMI

  • File > Export Model > FMI.

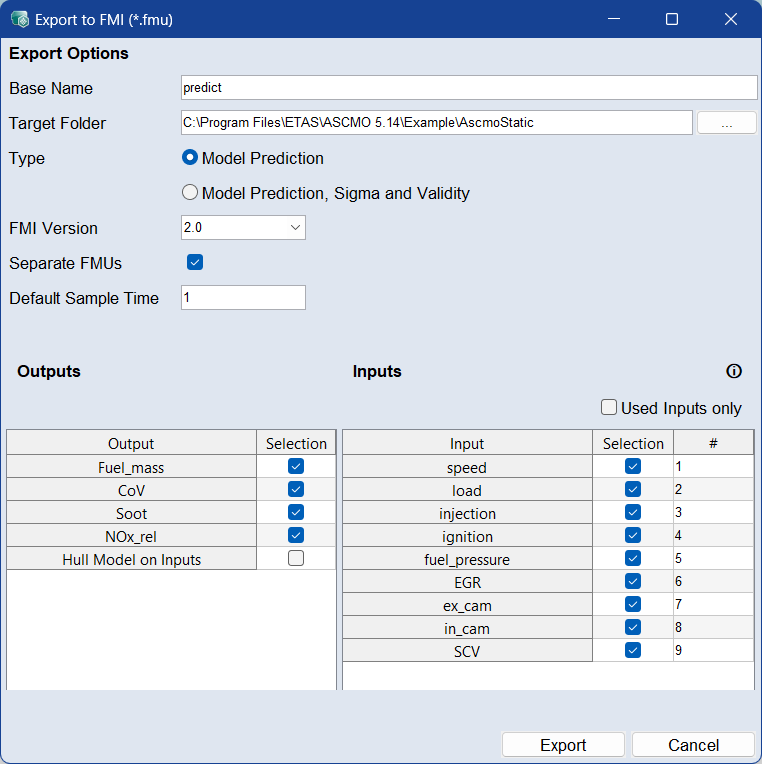

    ClosedExport to FMI (*.fmu) window

  • Set the Base Name (defines the file names <base name>_<output>) and the Target Folder.

  • Select the Type of data you want to export.

  • Select the FMI Version to which the model is exported.

  • Deselect the Separate FMUs checkbox to export the selected outputs as a single FMU file.

  • Set the default sample time for the experiment in seconds, e.g. 0.1 or 0.01.

    • Select the Inputs and Outputs to export in the table.

      To export only used inputs, select Used Inputs Only.

  • Click Export.

  • The export starts and the files are saved to the specified path. A link to the export folder is displayed in the log window.
