Settings (Single Result Optimization)
Optimization menu > Single Result> Settings

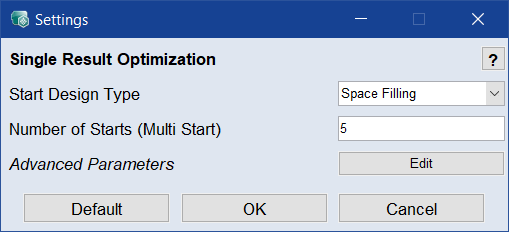

The Settings window for single result optimization contains the following elements:
Start Design Type
Start design for Multi Start. The following settings are possible:
|
Last |
The current settings in the ISP view are taken as start values. |
|
Space Filling |
The start values are selected space-filling by the Sobol algorithm. |
|
All Edges |
Start values = all corners of the experimental space (2Number of parameters). The rest of the population is distributed in the parameter space according to the Sobol algorithm. |
Number of Starts (Multi Start)
The number of optimization runs. To ensure that a global minimum is found, the optimizer should be started multiple times using different start values.
|
Note |
|---|
|
Only available if the Advanced Settings are enabled. |
The Edit button opens the
Advanced Parameters window for single result optimization where you can determine the number of iterations. If the optimizer should converge before reaching the defined number, it stops earlier.
Default
Sets all parameters to their default values.
OK
Applies your settings and closes the window.
Cancel
Discards your settings and closes the window.
See also
