Using an ASCET, FMU or Simulink Model

After mapping parameters, inputs, and outputs, proceed as follows to verify and use the ASCET, FMU or Simulink model:

  1. In the model list of the Models pane, select the ASCET/FMU/Simulink project you want to use.

    The lower part of the Models pane shows the ASCET Model, FMU Model or Simulink Model variant.

  2. Click on Validate All.

    A message window opens. It shows the results of the validation.

  3. If necessary, correct invalid mappings.

  4. In the navigation, click on Function.

    The Function pane opens.

  5. Add a new node or edit an existing node.

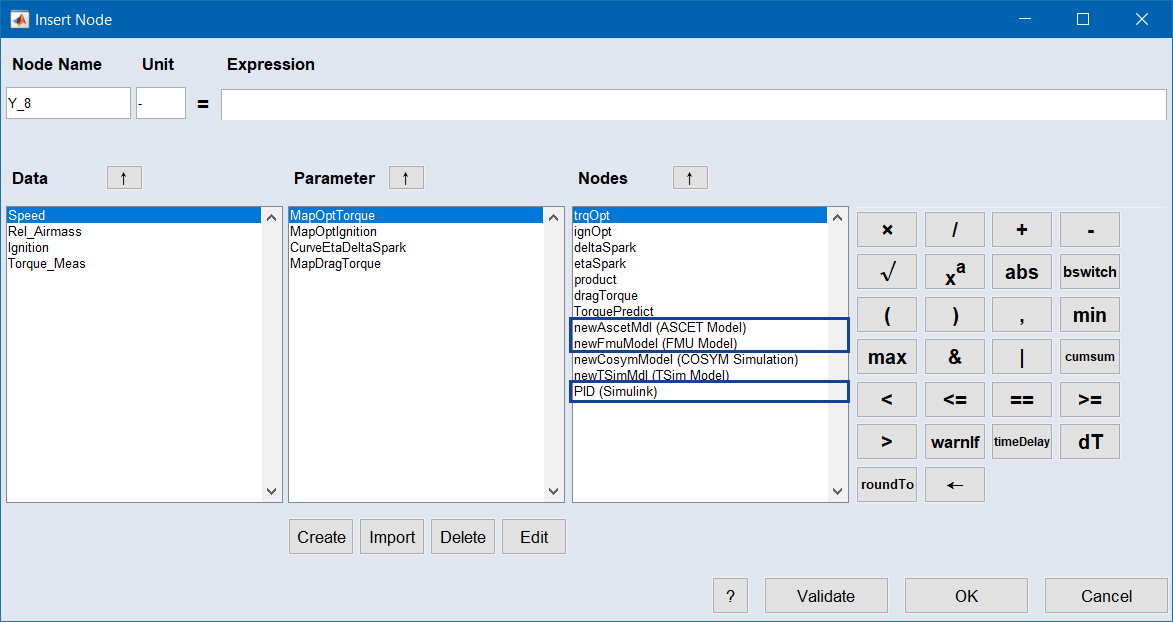

    The ASCET/FMU/Simulink model is available in the Closed"Nodes" area.

  6. Insert the ASCET/FMU/Simulink model in the expression.

  7. Click on OK.

  8. The node is added or changed according to your settings. In addition, a node<ASCET model name>_mdl.<output name>, <FMU model name>_mdl.<output name> or <Simulink model name>_mdl.<output name> is created for each model output.
