Visualizing Measurement Data in a Scatter Plot

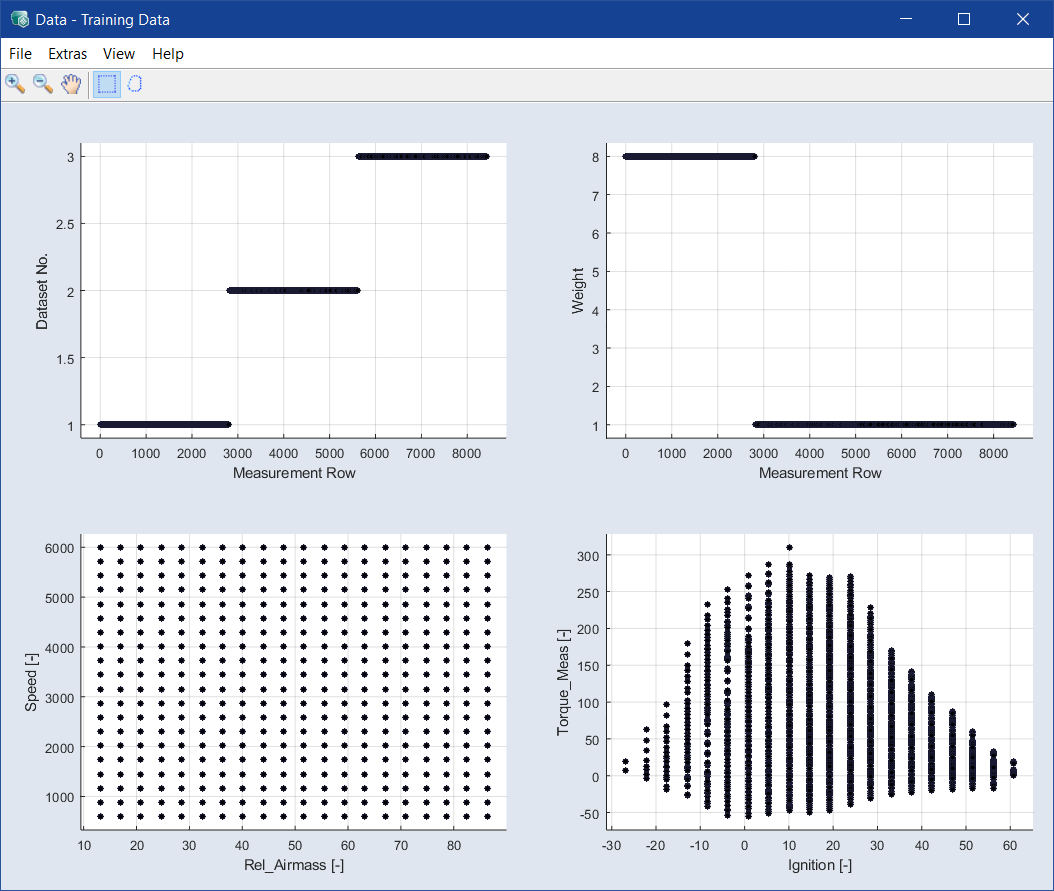

1. Select Analysis > Scatter Plot > Training Data/Test Data/Training and Test Data > Data/Function Nodes.

   The Data and - if your project contains function nodes – Function Nodes windows open. Only the Data window is used for the current task.



   The bottom-left plot (Speed over Rel_Airmass) shows the space-filling variation of the data in the experimental plan.
