Deleting an Outlier

You can now use the scatter plots to remove outliers.

1. Search the plots for outliers.

   In this tutorial, use the top-left point in the Torque_Meas over Speed plot, with Torque_Meas > 300.

2. Click the Mouse selection in Plot with Rectangle button.

3. Click in the plot and draw a rectangle around the outlier (cf. Drawing a Rectangle).

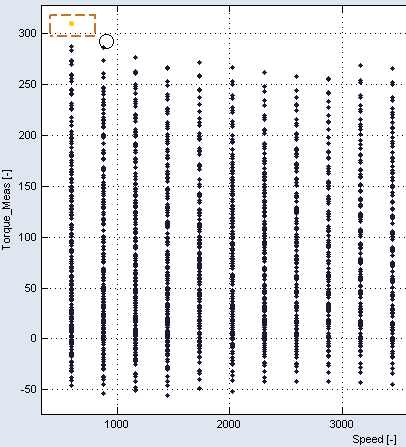

   The selected points are colored in all scatter plots.



4. Right-click the frame of the rectangle and select Mark Point from the context menu.

   The marked points are highlighted with a red circle.

5. Select Extras > Delete Marked Points.

6. The outlier is deleted from the measurement data.
