Plugin: "Generate Standard Report"

The "Generate Standard Report" plugin allows you to generate a report in HTML format (Plugins → Generate Standard Report), which contains the most important information from the ASCMO-STATIC project.

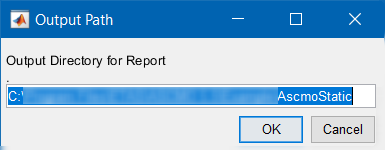

Before the report can be generated, you must specify the location in the "Output Path" window.

The following information and plots are displayed in the report:

General Information

• Date and time of generation
• Number of Training Data
• Number of Test Data
• Number of Inputs
• Number of Outputs

Inputs

• Name of Input 1
• Name of Input <n>

Outputs

• Name of Output 1
• Name of Output <n>

Measured vs. Predicted (Leave-On-Out)

See Model → Error (Leave-One-Out) → Measured vs. Predicted.

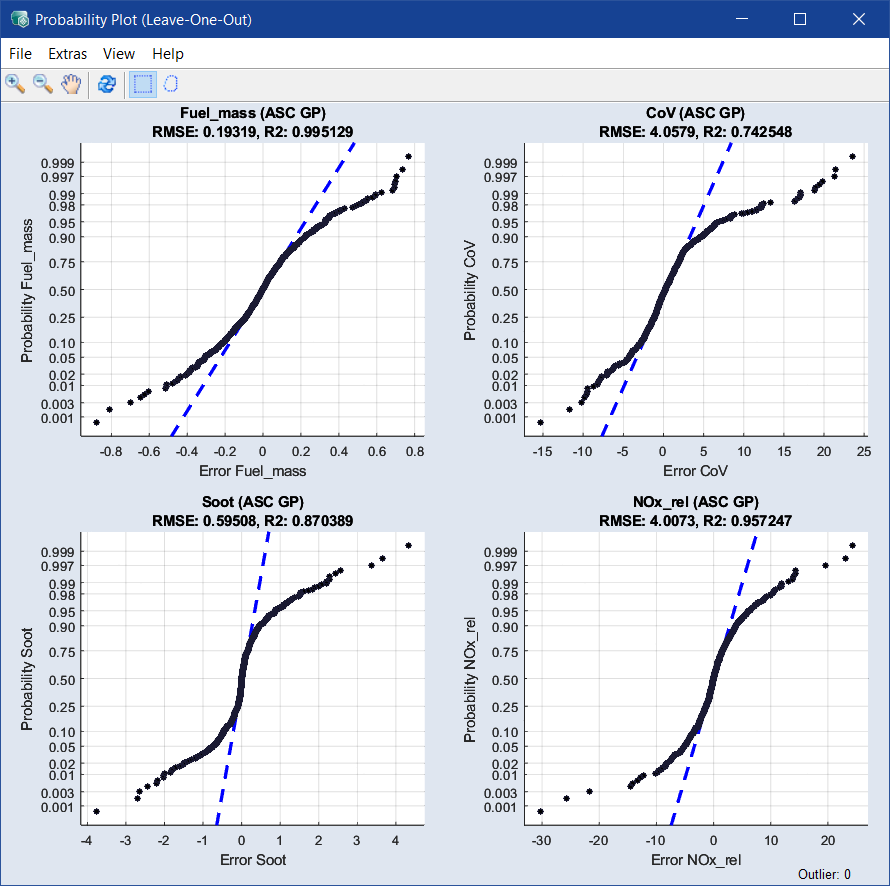

Probability Plot

See Model → Error (Leave-One-Out) → Probability Plot.

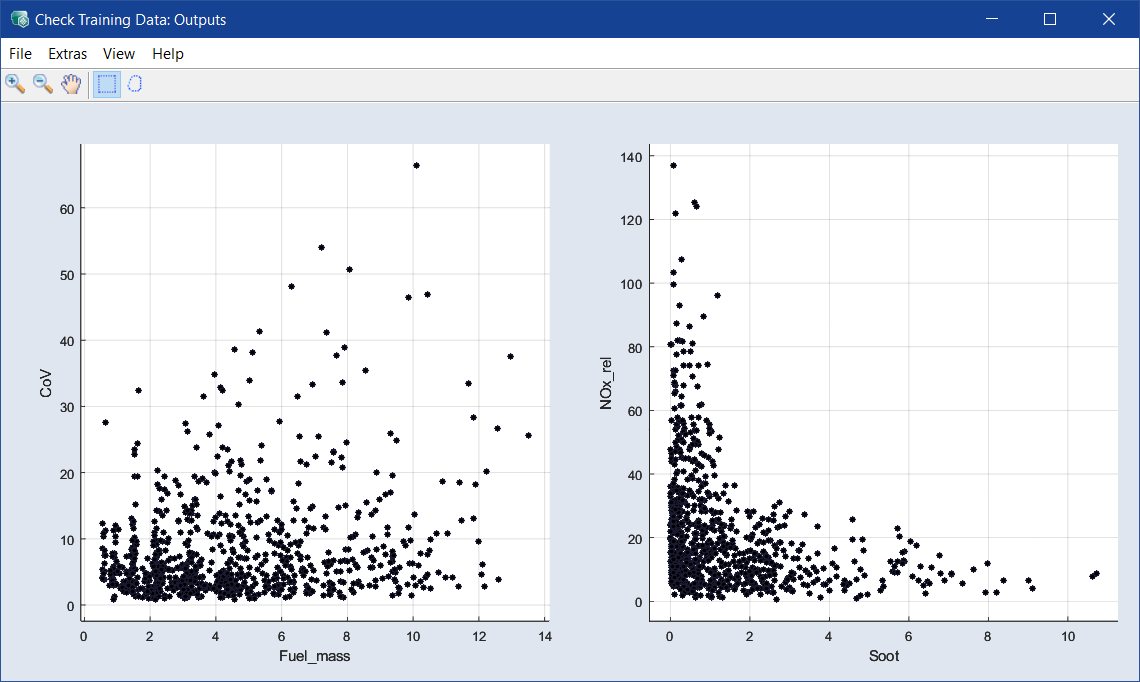

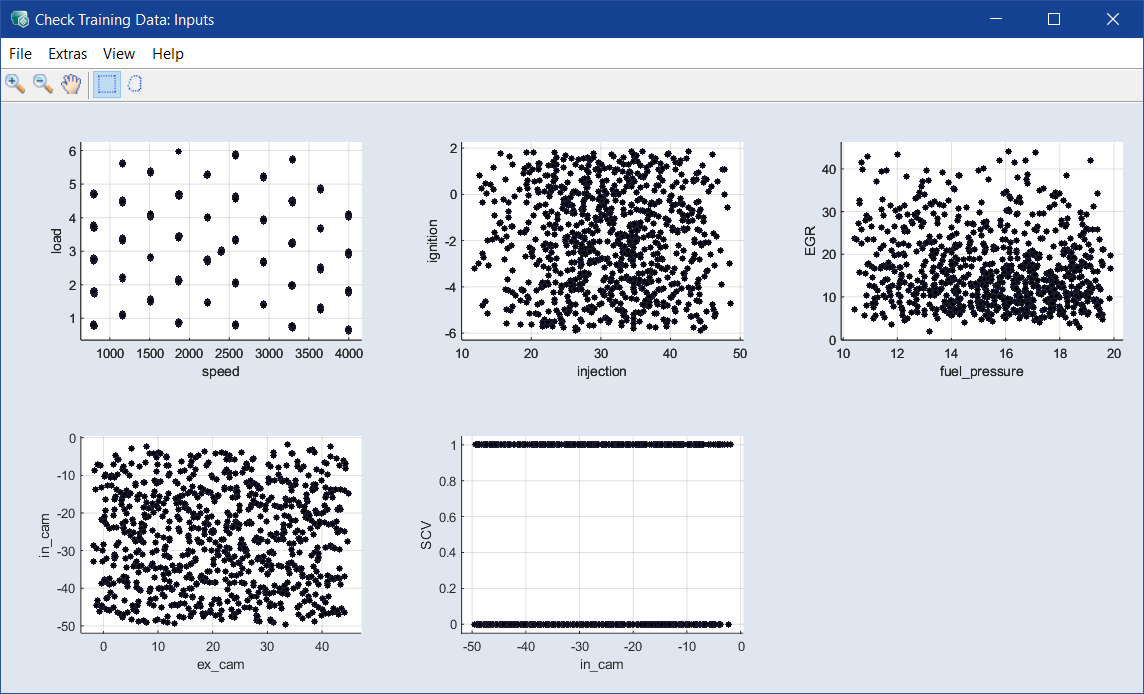

Training Data

See Data → Check Training Data.

Inputs

Outputs
