Changing the Axis Pairs

Since the current view does not show the dependence of the relevant measurement data, you must adjust the axis pairs. The selection of the displayed axes takes place directly in the plot window.

1. In the Data window of Scatter Plot, select View > Select Axes.

   The Select Axes window opens.

2. Go to the Matrix tab.

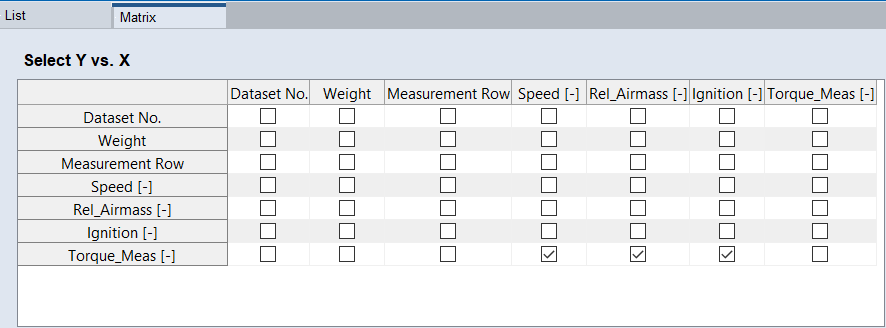

3. In the Matrix tab, select the axis pairs shown in the following figure.

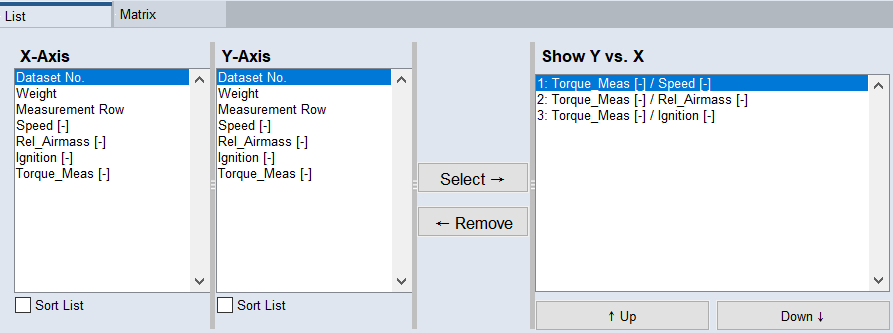

   In the List tab, you have an alternate representation of the selection of the axes pairs that are to be visualized.



4. Do one of the following:

   • Click Apply.

   • Click OK.

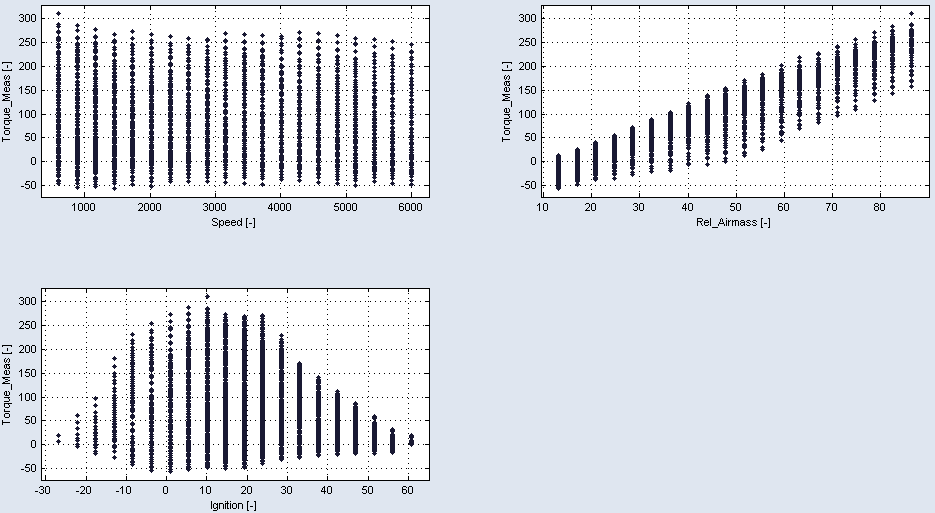

5. The visualized axes in the scatter plot will be adjusted. The Select Axes window remains open.
