Optimizing a Map/Curve Grid

  1. In the ASCMO-Calibration Data Editor window, select a curve or map parameter.

  2. Click on Optimize Grid.

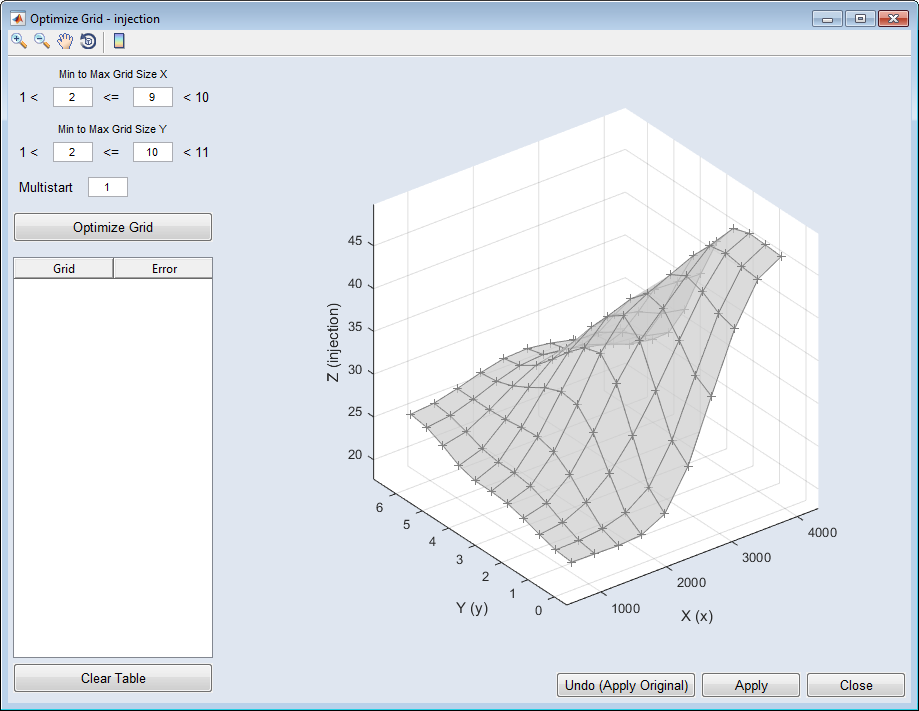

    The map or curve is displayed in the Closed"Optimize Grid" window.

  3. In the "Min to Max Grid Size X" and "Min to Max Grid Size Y" areas, enter the minimum and maximum numbers of grid nodes for the X axis and Y axis.

    Note

    The minimum number of grid nodes for an axis is 2. The "Min to Max Grid Size Y" area is only available for maps.

  4. If desired, adjust the number of repetitions in the "Multistart" fields.

  5. Click on Optimize Grid to start the calculation.

    Maps/curves for all possible sizes (x_min,y_min .. x_max,y_max / x_min .. x_max) are calculated. Size and error of a computed map/curve are written to the optimization table, and the calculated map/curve is shown in the plot area.

  6. Select a map/curve in the optimization table and click on Apply.

    The selected map/curve version is applied to the parameter. Undo (Apply Original) restores the original map/curve.

See also

Optimize Grid
