Prognosis OP-Weights

Calibration menu > Prognosis > Weights

Or

Calibration menu > Prognosis > Calculation Rules > Weights

With the weighting of the duration of stay at certain operating points, you can map a driving cycle. The weights of the operating points can also be calculated by measuring a trajectory. This involves each measurement being assigned to an operating point (File > Use Driving Cycle to assign OP-Weights)and totaled which in turn results in the weighting for each of the operating points defined previously.

If several lists of operating points were created (see Operating Points Manager), each list is shown in a separate tab.

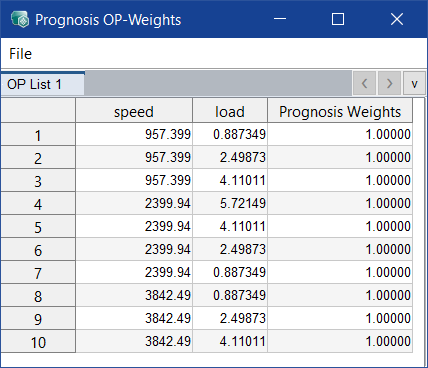

The Prognosis OP-Weights window contains the following elements:

File

• Plot Selected Data

  Displays the selected (marked) table values as data plot.

• Import


  Loads the weights from a file.

• Export

  Saves the list to a file.

• Assign OP-Weights using a Driving Cycle

  The weights of the operating points can also be calculated by measuring a trajectory. This involves each measurement being assigned to an operating point and totaled which in turn results in the weighting for each of the operating points defined previously. See also Using a Driving Cycle to Assign OP Weights.

• Close

  Closes the window.
