Density Plot <driving cycle>

Calibration menu > Driving Cycles > Density Plot

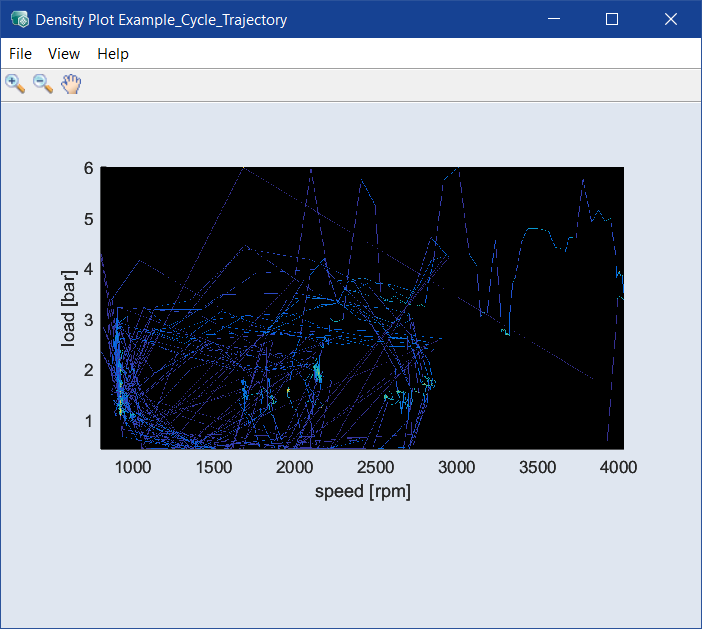

This window shows a density plot of the operating point axes of the selected driving cycles.

The Density Plot <driving cycle> window contains the following elements:

Closed File

Closed View

Select Axes

Opens the where you can select the axes pairs to be plotted.

Plot Settings

Opens the Plot Settings window where you can make the Closed following settings.

Min Axis Width/Height

This allows you to set the minimal size of the plot in pixel. If you change the size of the Density Plot window, the individual plots will be adapted automatically until you reached your desired size. If you want to minimize more the Density Plot window, you will get scrollbars in the navigation.

Note
The axis width has to be an integer in [100 900] and the axis height has to be an integer in [100 600].

Fineness

Sets the fineness of the rasterized image.

Note
Available values: 0 ... 10. The lower the value is, the finer is the image.

Blur

A Gauss filter allows to visualize effects and to have an optimal use of the plot visualization. It is individual available for all experiment plans.

Note
If Blur is "0", you can see the period frequency of stay of the grid point.

White background

Creates a white background.
Show Colorbars

Shows the color bars.

Save as Bitmap

This allows the content of the window to be saved in a series of graphic formats.
Copy to Clipboard

Copies the window content to the clipboard.

Closed Help

Closed Toolbar

This table shows a selection of possible toolbar buttons.

	Zoom in	By clicking in the plot, the visualization becomes larger.
	Zoom out	By clicking in the plot, the visualization becomes smaller.
	Pan	This allows you to move the plot within the window.
	Mouse selection in plot with rectangle	Sets the selection tool in the scatter plots to a rectangle.
	Mouse selection in plot with lasso	Sets the selection tool in the scatter plots to a lasso.
	Update	Updates the plots in the window.
