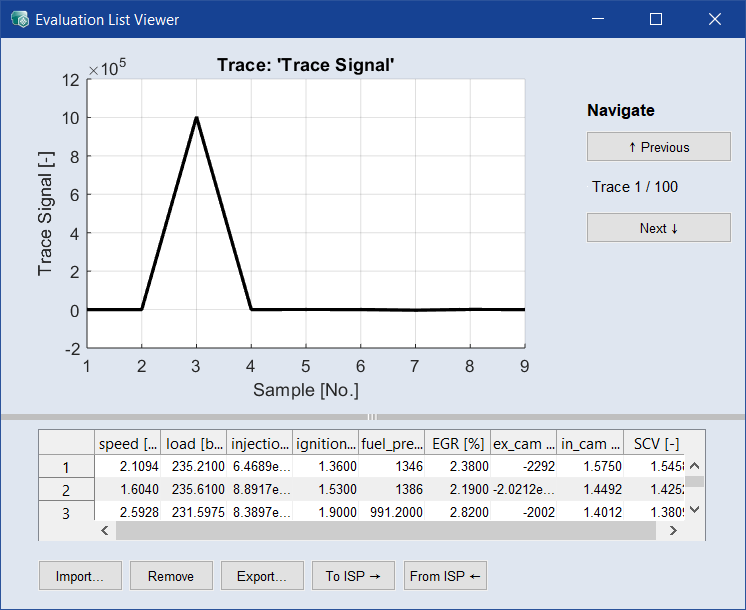

Evaluation List Viewer

Extras menu > Signal Trace Modeling > Open Viewer > Model menu > Evaluation List > Open List Viewer

The Evaluation List Viewer window contains the following elements:

• Import

  Opens a file selection window where you can select the file (*.xls, *.xlsx, *.csv, *.txt) you want to import. After selecting the file and clicking Open, the Add Points to Evaluation List window opens where you can assign the columns of the new file to existing entries. If the column names and the entry names match, they are assigned automatically.

• Remove

  Removes the selected row from the list viewer.

• Export

  Opens the Signal Trace Evaluation List Export window and saves the list as Excel (*.xls, *.xlsx) or CSV (*.csv) file. Several signals are exported to different sheets in one Excel file.

• To ISP

  Sets the intersection plot values to the values of the currently selected row.

• From ISP

  Adds the current values of the ISP view to the list viewer.
