Step 5: Build Up the Function

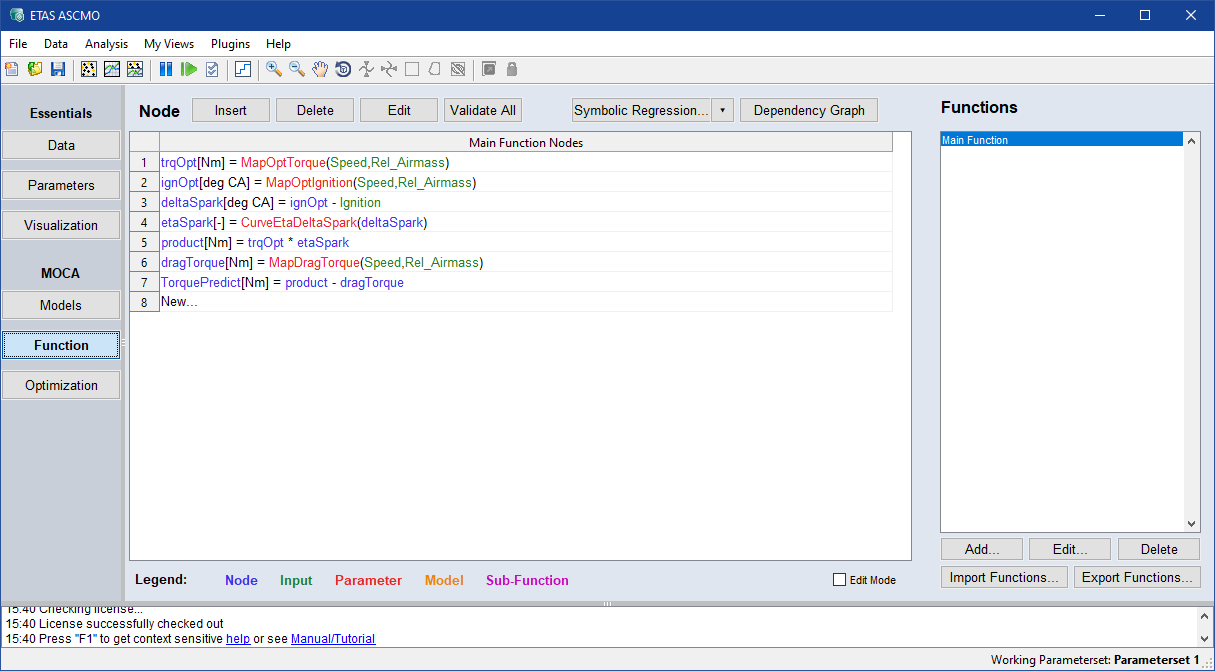

After reading the measuring data and checking the plausibility, you can start to set up the function for the torque sensor that will be modeled during the tutorial. The available operators are described in Mathematical Operators for Function Nodes.

NOTICE
If you extend the data range and limits of the function parameters beyond the valid range of your system (e.g., a test bench), the system can become overloaded and damaged, when using the exported parameters in the system. Always ensure that the limits and ranges in ASCMO-MOCA match the limits and ranges of your system before exporting the parameters. If you want to perform a specific calibration and optimization task, these values are required knowledge.

NOTICE

If you extend the data range and limits of the function parameters beyond the valid range of your system (e.g., a test bench), the system can become overloaded and damaged, when using the exported parameters in the system.

Always ensure that the limits and ranges in ASCMO-MOCA match the limits and ranges of your system before exporting the parameters.

If you want to perform a specific calibration and optimization task, these values are required knowledge.
