Step 1: Data Import

In this first step, you will load the measurement data. When you import several files, you can assign the channel names to project specific names, e.g. if the channel names are not identical.

Loading the measurement file

If you want to start a new project, you first of all have to load the required measurement file for parametrization and optimization.

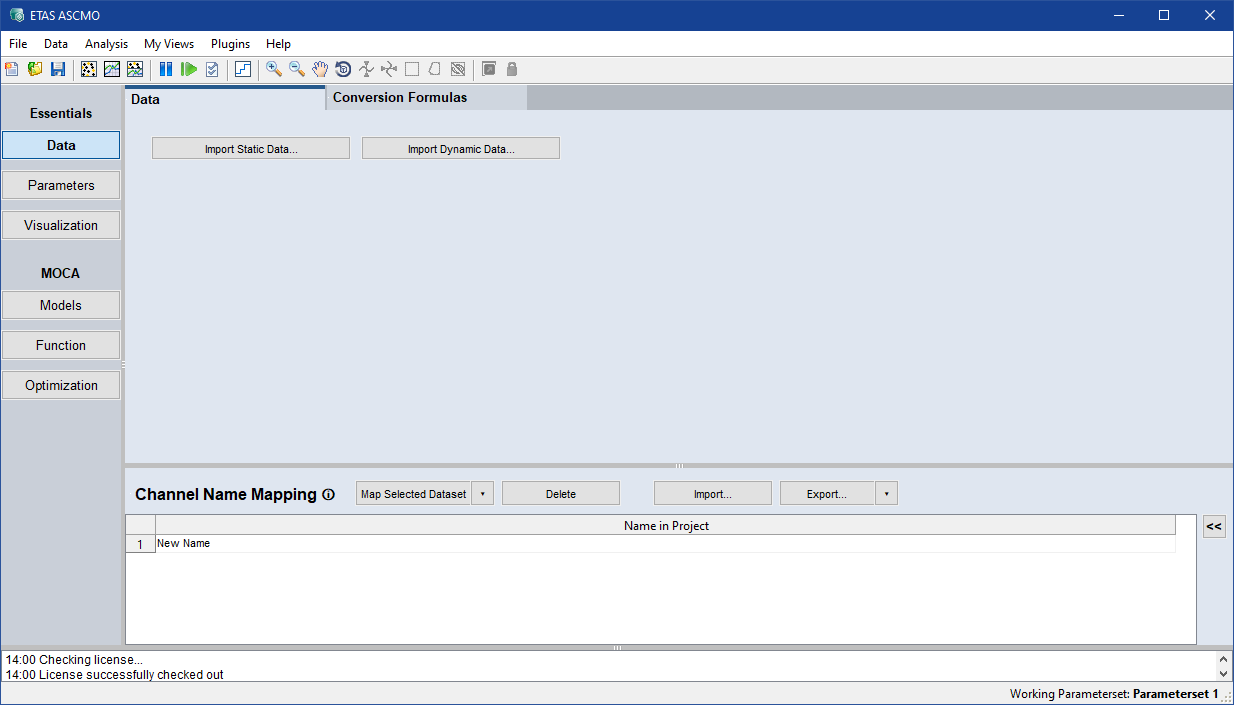

1. In the main working area, click the button Import Static Data.

2. In the file selection window, select the file Torque_Data.xlsx from the <installation>\Example\Moca directory.

   By default, <installation> is C:\Program Files\ETAS\ASCMO x.x.

3. Click Open.

   If the import file contains several worksheets, the Sheets window opens.

4. In the Sheets window, select the worksheet you want to import (for this tutorial: Torque_Data), then click OK.

   The ASCMO Data Import window opens.


   The Data Preview table shows all data in the table. In the Available Channels field, you can determine which channels you want to import.
