Dealing with Reference Parameters

This functionality enables you to show/hide the reference parameters in addition to the current parameters during the optimization.

1. Click on Set As Reference to copy the current values of the parameters to the reference page.

   The reference page is kept until the next time you click on Set As Reference. If you click on Set As Reference again, the current reference parameters are overwritten without further notice.

   If you do not set a reference, the init values of the parameters are used as reference.

2. Click on Reset From Reference if you want to reset the optimized parameters to the reference values.

3. In the "Parameter" table, select a map, curve, or cube.

4. Activate the Show Reference option at the bottom right of the window.

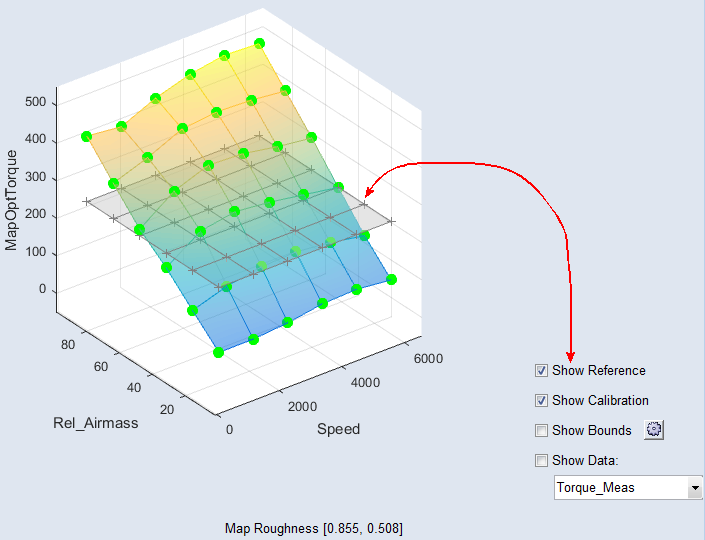

   The reference parameter is visualized by a + sign (scalar) or several + signs connected with a thin line (curves) or a gray map (maps; see figure below) and cubes).
