Creating a New Parameter

To create the MapOptTorque parameter, proceed as follows.

1. In the Edit Note window, click the Create button below the Parameter area.

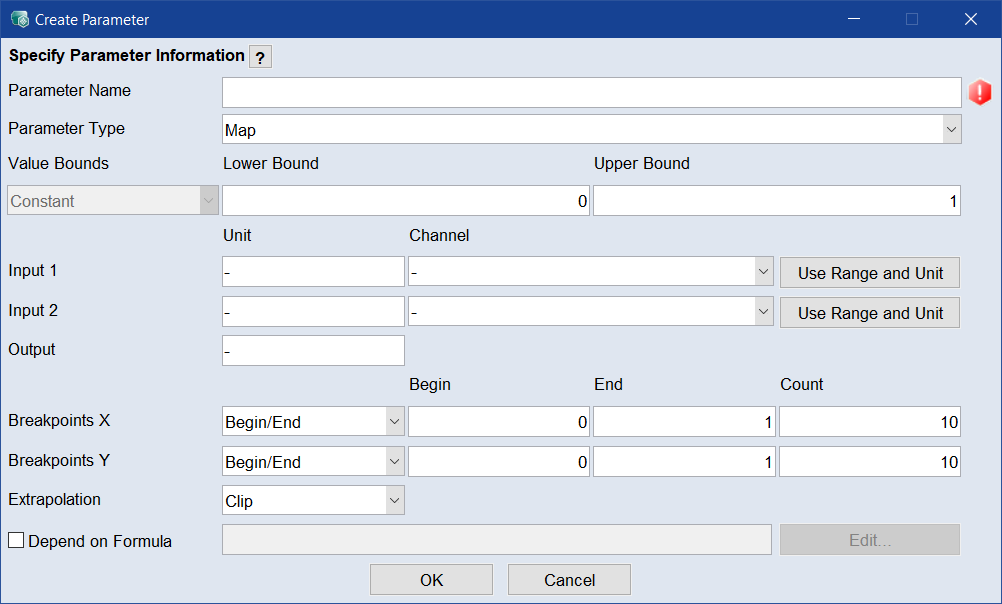

   The Create Parameter window opens.



2. Enter the parameter information.

   For MapOptTorque, use the following values:

   Parameter Name:	MapOptTorque
   Parameter Type:	Map
   Value Bounds:	0 - 500
   Input 1:	Speed
   Input 2:	Rel_Airmass
   Breakpoints X:	Begin/End; Begin = 500; End = 6000; Count = 6
   Breakpoints Y:	Begin/End; Begin = 10; End = 90; Count = 6
   Extrapolation:	Clip

   Note
   If you click Use Range, the values range of the X and Y axes are automatically set to the minimal and maximal value of the channel.

3. Click OK.

   The parameter is created. It appears in the Parameter area.

Next, you create and set up the node ignOpt.
