Min/Max Data & Nodes

Analysis menu > Show Data Min/Max

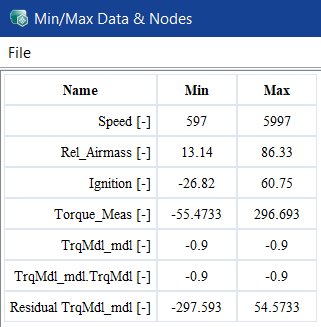

The Min/Max Data & Nodes window contains the following elements.

Data table

The data table shows the range (Min → Max) of all function-related project data such as:

• Parameters
• Nodes
• Measuring data

File

• Save as Html

  Saves the data table as HTML file (*.html).

• Save as Bitmap

  Saves the data table as Bitmap file (*.bmp).

• Copy to Clipboard

  Copies the selected part of the data table for the further usage to the clipboard.
