Log Window

The bottom part of the main window displays information about the current program sequence, e.g. information about the optimization.

Blue underlined words in the log window are links that open, e.g., the online help or the user guide (a and b in the figure) or give access to sample projects (c - e in the figure). In addition, the log files can be saved for analysis and error handling reasons.

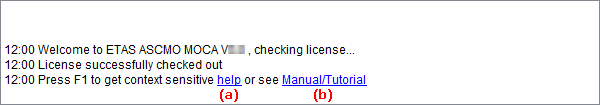

Fig. 9: Information in the log window (example; a: link to the online help, b: link to the User Guide PDF)

Saving the logfile

1. Right-click in the log window and select Save Log to File from the context menu.

   The "Save Log file As" window opens.

2. Insert a file name and click Save.

   The log file is saved.
