Example: Accessing ASCET Messages

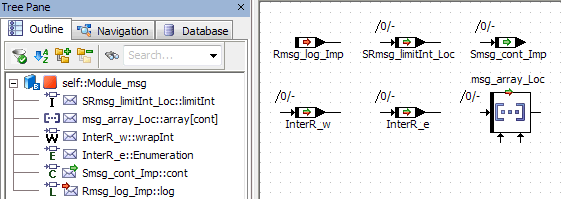

The following module with several messages is added to an SWC AUTOSAR software component (singular; plural is SWCs).

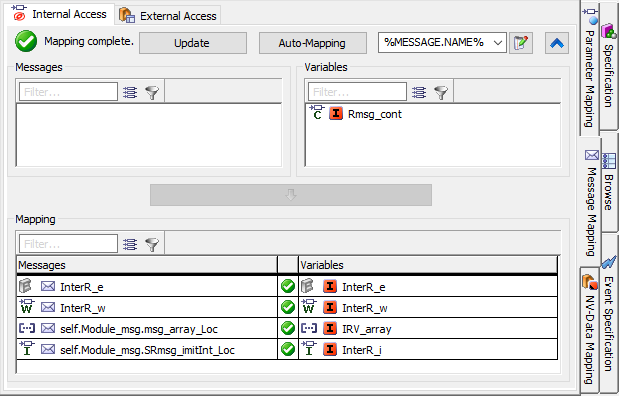

Several interrunnable variables and one message of array type are also added to the SWC. In the Internal Access tab, message mapping is performed with the Auto-Mapping button, and two messages are mapped manually. The result is shown below.

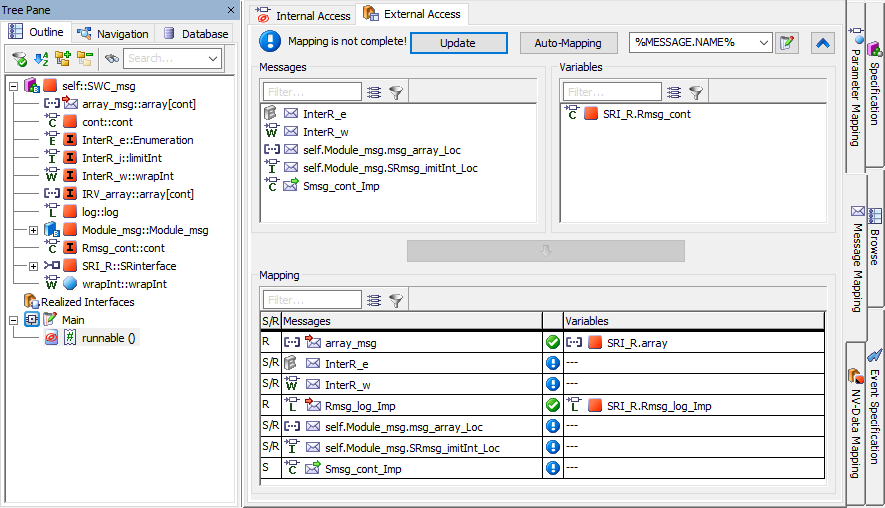

In the External Access tab, message mapping is performed with the Auto-Mapping button, and the message in the SWC is mapped manually. The result is shown below.
