Examples: Rules for Formulas

An ASCET model contains two parameters named cont and input. Both elements are of model data type cont.

Example for Rule A

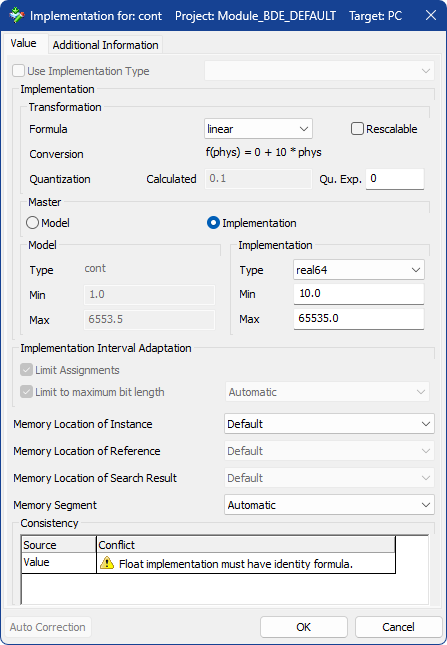

cont is implemented with the implementation type real64 and the formula linear (see here).

The following warning is issued during code generation:

WARNING(WIa62): Element "cont" using float implementation must have identity formula --- formula "ident" is used instead of formula "linear"

The ASAM-MCD-2MC code generated for cont looks as follows.

Example for Rule B

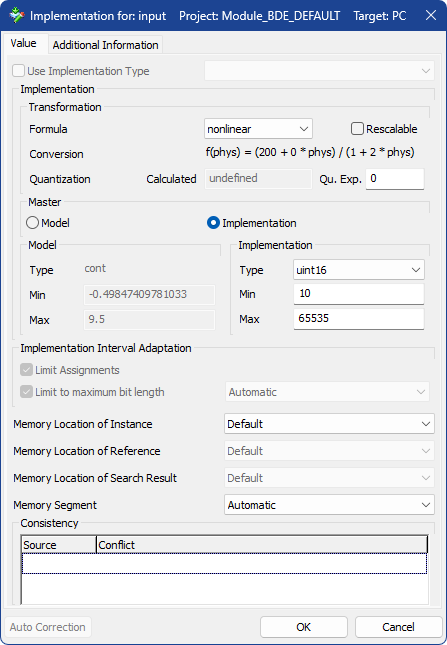

input is implemented with the implementation type uint16 and the formula nonlinear (see here).

If input is connected to, e.g., a mux operator, code generation works without error.

The ASAM-MCD-2MC code generated for input looks as follows.

If input is connected to, e.g., an addition operator, the following warning is issued during code generation.

Error (MMdl623) - Operation add is not supported for non-linear formula %2
