Example: Sinus Stimulation Mode

A continuous variable, sine_1, is stimulated with a sine curve. The sine curve uses the following settings:

frequency

1 Hz = 1 s-1

phase

0 s

offset

0

amplitude

1

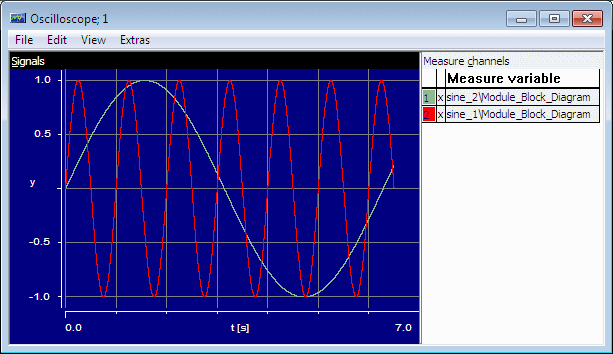

The red curve in the figure shows sine_1.

The gray curve in the figure shows the variable sine_2, for comparison. sine_2 uses the same phase, offset, and amplitude as sine_1, and a frequency of 1 rad/s (which corresponds to 1/2p Hz).
