Example: Reproducing a Block Diagram as ESDL Component

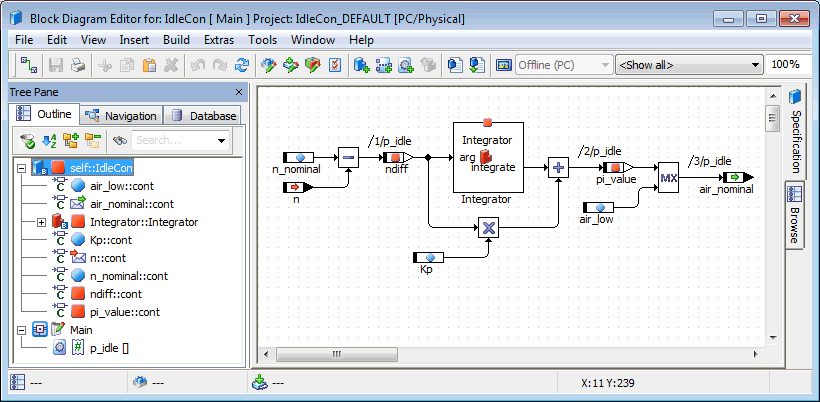

The module IdleCon is specified as block diagram.

IdleCon is selected in the component manager, and the Reproduce as command is executed with <item type> = ESDL.

An ESDL module named IdleCon1 appears in the component manager:

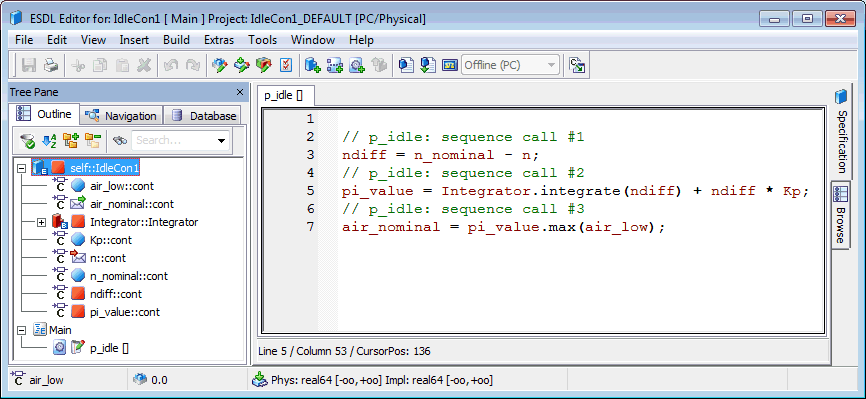

The block diagram has been converted to the following ESDL code:

The sequence numbers are added as comments, for better readability.
