Example: Communication Status Operator

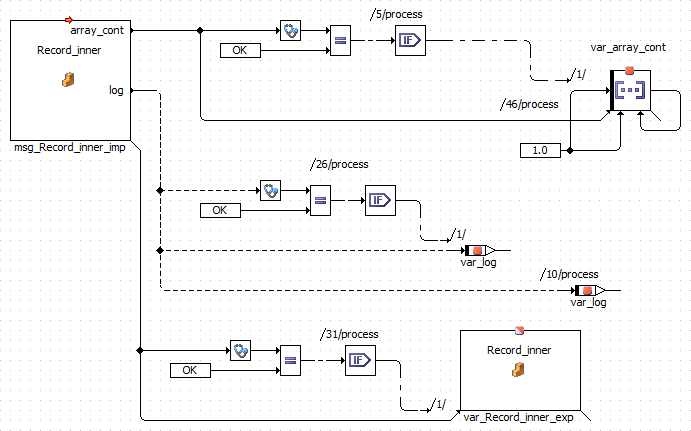

A block diagram module has been created as example for the Communication status operator. The module contains the following elements:
Name | Type | Scope | Kind |
|---|---|---|---|
msg_Record_inner_imp | Record_inner | imported | receive message |
var_array_cont | array[cont] | local | variable |
var_log | log | local | variable |
var_Record_inner_exp | Record_inner | exported | variable |

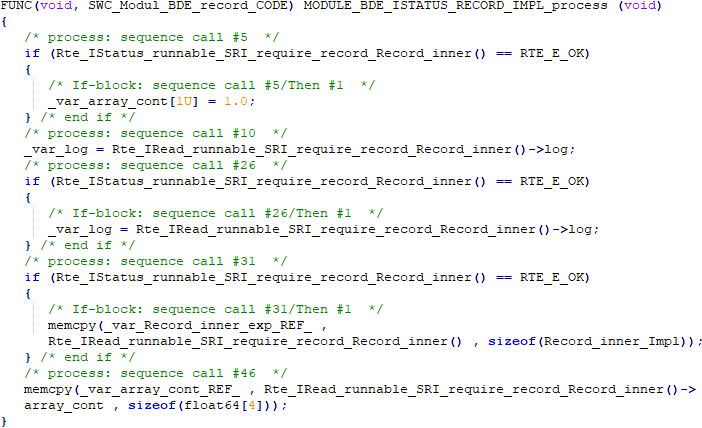

AUTOSAR environment
